Sudan exposure#
This page summarises the exposure model for Sudan in Africa, including national, subnational, and taxonomy-level views.
National summary#
The national exposure profile by occupancy class highlights the distribution of buildings, replacement value, and exposed population.
| BUILDINGS | POPULATION | TOTAL_COST | BUILDINGS_% | POPULATION_% | TOTAL_COST_% | |
|---|---|---|---|---|---|---|
| OCCUPANCY | ||||||
| COM | 259.8K | 0.0M | $18.0B | 2.81% | 0.00% | 11.02% |
| IND | 106.1K | 0.0M | $9.6B | 1.15% | 0.00% | 5.88% |
| RES | 8,881.7K | 51.7M | $136.0B | 96.04% | 100.00% | 83.10% |

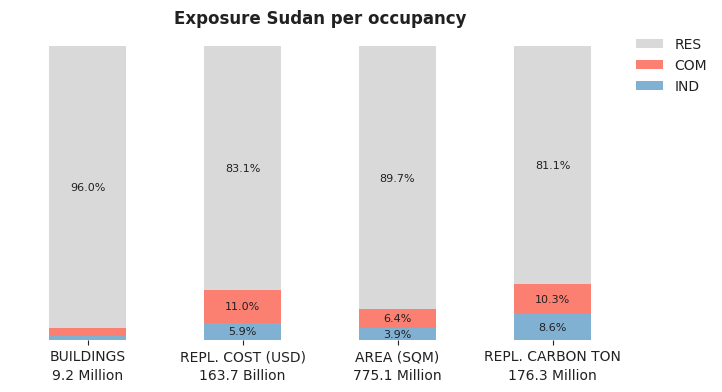

Figure: Relative contribution of occupancy classes to total national exposure in Sudan.

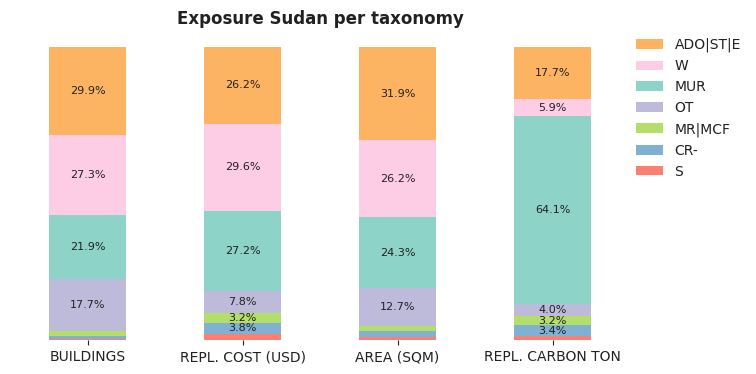

Figure: National exposure distribution by taxonomy classes in Sudan.

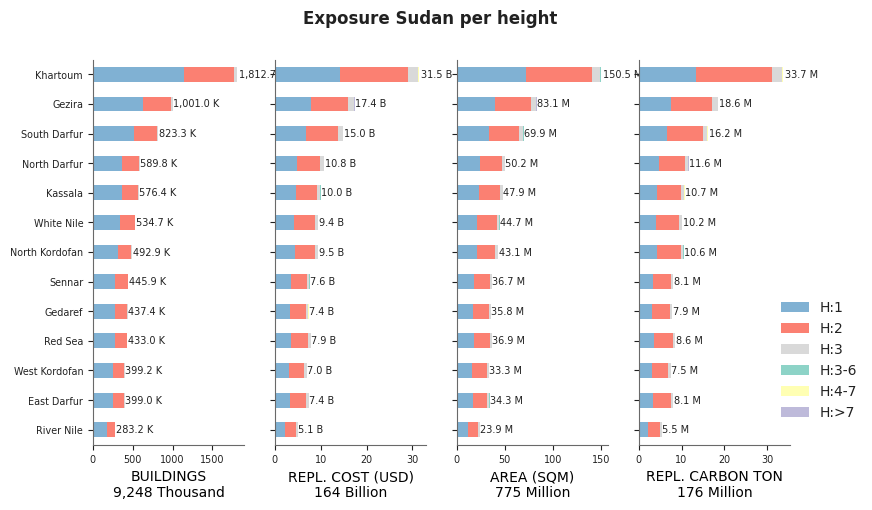

Figure: Building height profile used in the exposure model for Sudan.
Subnational summary#
The subnational summary aggregates exposure by first administrative level and supports comparison of spatial concentration of assets.
| BUILDINGS | POPULATION | TOTAL_COST | BUILDINGS_% | POPULATION_% | TOTAL_COST_% | |
|---|---|---|---|---|---|---|
| NAME_1 | ||||||
| Khartoum | 1,812.7K | 10.8M | $31.5B | 19.60% | 20.96% | 19.23% |
| Gezira | 1,001.0K | 6.0M | $17.4B | 10.82% | 11.57% | 10.62% |
| South Darfur | 823.3K | 4.9M | $15.0B | 8.90% | 9.39% | 9.14% |
| North Darfur | 589.8K | 2.5M | $10.8B | 6.38% | 4.83% | 6.58% |
| Kassala | 576.4K | 3.4M | $10.0B | 6.23% | 6.66% | 6.13% |
| North Kordofan | 492.9K | 2.2M | $9.5B | 5.33% | 4.30% | 5.82% |
| White Nile | 534.7K | 3.2M | $9.4B | 5.78% | 6.15% | 5.76% |
| Red Sea | 433.0K | 1.6M | $7.9B | 4.68% | 3.09% | 4.84% |
| Sennar | 445.9K | 2.7M | $7.6B | 4.82% | 5.18% | 4.66% |
| East Darfur | 399.0K | 1.6M | $7.4B | 4.31% | 3.14% | 4.54% |
| Gedaref | 437.4K | 2.6M | $7.4B | 4.73% | 5.10% | 4.51% |
| West Kordofan | 399.2K | 2.4M | $7.0B | 4.32% | 4.60% | 4.27% |
| River Nile | 283.2K | 1.7M | $5.1B | 3.06% | 3.24% | 3.10% |
| South Kordofan | 246.6K | 1.5M | $4.2B | 2.67% | 2.86% | 2.59% |
| Blue Nile | 211.4K | 1.3M | $3.8B | 2.29% | 2.42% | 2.30% |
| West Darfur | 219.1K | 1.3M | $3.7B | 2.37% | 2.56% | 2.25% |
| Northern | 193.2K | 1.1M | $3.4B | 2.09% | 2.22% | 2.08% |
| Central Darfur | 148.9K | 0.9M | $2.6B | 1.61% | 1.72% | 1.59% |

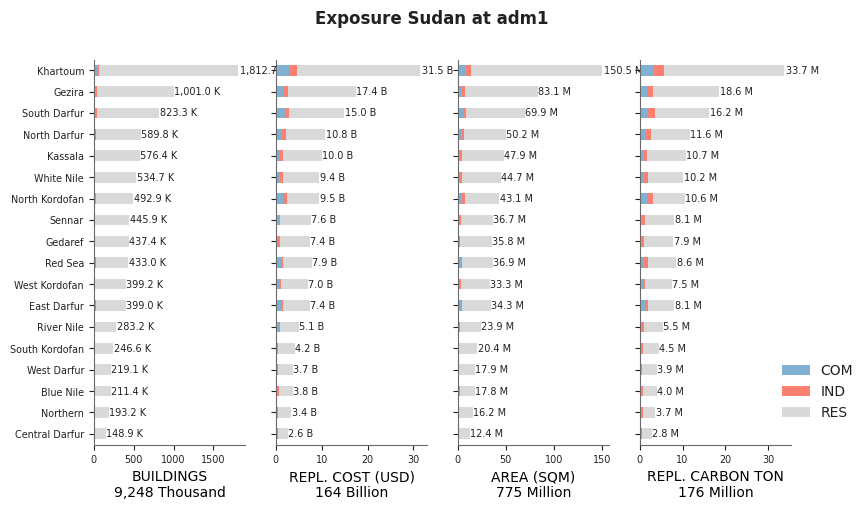

Figure: Subnational distribution of exposure by occupancy class across first-level administrative units.

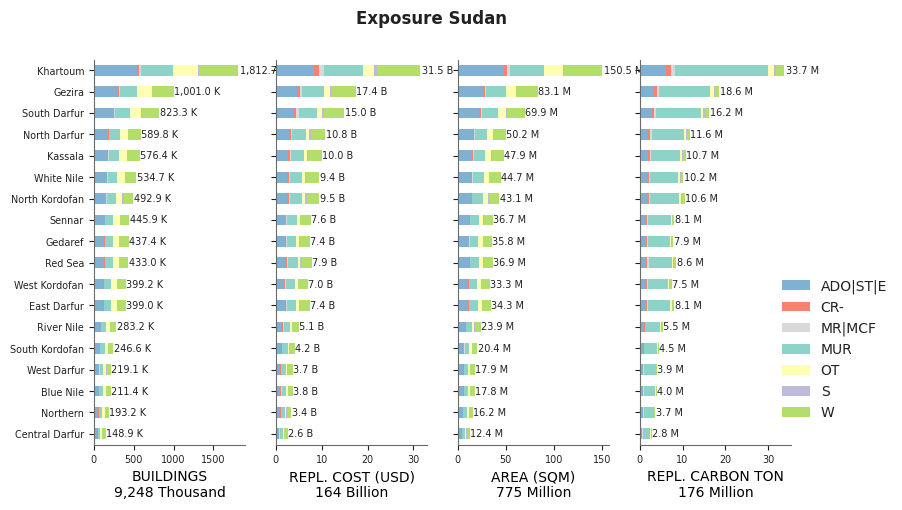

Figure: Subnational distribution of exposure by taxonomy classes across first-level administrative units.
Taxonomy summary#
The taxonomy summary provides a detailed view of building classes represented in the national exposure model.

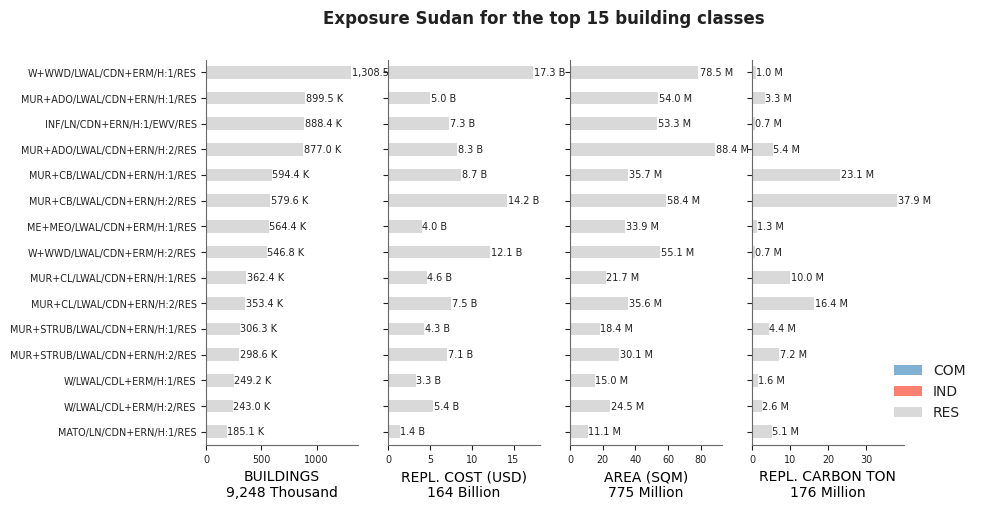

Figure: Distribution of exposure by detailed taxonomy classes in Sudan.
| BUILDINGS | POPULATION | TOTAL_COST | BUILDINGS_% | POPULATION_% | TOTAL_COST_% | |||
|---|---|---|---|---|---|---|---|---|
| MACRO_TAXONOMY | TAXONOMY | OCCUPANCY | ||||||
| W | W+WWD/LWAL/CDN+ERM/H:1/RES | RES | 1,308,492 | 7,305.8K | $17,278.8M | 14.15% | 14.14% | 10.55% |
| MUR | MUR+CB/LWAL/CDN+ERN/H:2/RES | RES | 579,561 | 3,318.8K | $14,248.4M | 6.27% | 6.42% | 8.70% |
| W | W+WWD/LWAL/CDN+ERM/H:2/RES | RES | 546,763 | 3,131.0K | $12,126.0M | 5.91% | 6.06% | 7.41% |
| MUR | MUR+CB/LWAL/CDN+ERN/H:1/RES | RES | 594,418 | 3,318.8K | $8,701.3M | 6.43% | 6.42% | 5.31% |
| ADO|ST|E | MUR+ADO/LWAL/CDN+ERN/H:2/RES | RES | 877,024 | 5,022.3K | $8,258.7M | 9.48% | 9.72% | 5.04% |
| MUR | MUR+CL/LWAL/CDN+ERN/H:2/RES | RES | 353,377 | 2,023.6K | $7,544.8M | 3.82% | 3.92% | 4.61% |
| OT | INF/LN/CDN+ERN/H:1/EWV/RES | RES | 888,414 | 4,960.3K | $7,333.9M | 9.61% | 9.60% | 4.48% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:2/RES | RES | 298,595 | 1,709.9K | $7,079.9M | 3.23% | 3.31% | 4.32% |
| MUR+STDRE/LWAL/CDN+ERN/H:2/RES | RES | 125,662 | 719.6K | $5,660.9M | 1.36% | 1.39% | 3.46% | |
| W | W/LWAL/CDL+ERM/H:2/RES | RES | 243,002 | 1,391.6K | $5,389.3M | 2.63% | 2.69% | 3.29% |
| ADO|ST|E | MUR+ADO/LWAL/CDN+ERN/H:1/RES | RES | 899,518 | 5,022.3K | $5,043.5M | 9.73% | 9.72% | 3.08% |
| MUR | MUR+CL/LWAL/CDN+ERN/H:1/RES | RES | 362,431 | 2,023.6K | $4,607.5M | 3.92% | 3.92% | 2.81% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:1/RES | RES | 306,251 | 1,709.9K | $4,323.6M | 3.31% | 3.31% | 2.64% |
| OT | ME+MEO/LWAL/CDN+ERM/H:1/RES | RES | 564,393 | 3,151.2K | $4,014.6M | 6.10% | 6.10% | 2.45% |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:1/RES | RES | 128,880 | 719.6K | $3,457.0M | 1.39% | 1.39% | 2.11% |
| W | W/LWAL/CDL+ERM/H:1/RES | RES | 249,240 | 1,391.6K | $3,291.2M | 2.70% | 2.69% | 2.01% |
| W/LWAL/CDL+ERM/H:3/RES | RES | 97,097 | 695.8K | $3,146.1M | 1.05% | 1.35% | 1.92% | |
| W/LWAL/CDL+ERM/H:1/COM | COM | 46,664 | 0.0K | $2,830.8M | 0.50% | 0.00% | 1.73% | |
| W/LWAL/CDL+ERM/H:2/COM | COM | 23,333 | 0.0K | $2,830.8M | 0.25% | 0.00% | 1.73% | |
| CR- | CR/LFINF/CDL+ERL/H:3/RES | RES | 40,694 | 291.6K | $2,114.6M | 0.44% | 0.56% | 1.29% |
| CR/LFINF/CDL+ERL/H:2/RES | RES | 50,923 | 291.6K | $1,811.2M | 0.55% | 0.56% | 1.11% | |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:2/RES | RES | 46,129 | 264.2K | $1,640.6M | 0.50% | 0.51% | 1.00% |
| W | W/LWAL/CDL+ERM/H:3/COM | COM | 7,780 | 0.0K | $1,633.1M | 0.08% | 0.00% | 1.00% |
| OT | MATO/LN/CDN+ERN/H:1/RES | RES | 185,058 | 1,033.2K | $1,376.0M | 2.00% | 2.00% | 0.84% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:2/COM | COM | 7,367 | 0.0K | $1,302.5M | 0.08% | 0.00% | 0.80% |
| MUR+STRUB/LWAL/CDN+ERN/H:1/COM | COM | 14,734 | 0.0K | $1,302.5M | 0.16% | 0.00% | 0.80% | |
| MUR | MUR+CB/LWAL/CDN+ERN/H:1/COM | COM | 31,999 | 0.0K | $1,299.7M | 0.35% | 0.00% | 0.79% |
| MUR+CB/LWAL/CDN+ERN/H:2/COM | COM | 15,994 | 0.0K | $1,299.7M | 0.17% | 0.00% | 0.79% | |
| MUR+CB/LWAL/CDN+ERN/H:3/RES | RES | 7,815 | 349.3K | $1,297.6M | 0.08% | 0.68% | 0.79% | |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:1/IND | IND | 15,155 | 0.0K | $1,231.2M | 0.16% | 0.00% | 0.75% |
| S | S+SL/LFM/CDL+ERL/H:1/IND | IND | 12,987 | 0.0K | $1,219.7M | 0.14% | 0.00% | 0.74% |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:1/RES | RES | 47,310 | 264.1K | $1,001.9M | 0.51% | 0.51% | 0.61% |
| MUR | MUR+CB/LWAL/CDN+ERN/H:1/IND | IND | 20,637 | 0.0K | $968.4M | 0.22% | 0.00% | 0.59% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:2/IND | IND | 5,052 | 0.0K | $895.4M | 0.05% | 0.00% | 0.55% |
| S | S+SL/LFM/CDL+ERL/H:2/IND | IND | 4,334 | 0.0K | $887.1M | 0.05% | 0.00% | 0.54% |
| S/LFM/CDL+ERL/H:1/IND | IND | 9,104 | 0.0K | $853.9M | 0.10% | 0.00% | 0.52% | |
| MUR | MUR+CL/LWAL/CDN+ERN/H:1/COM | COM | 20,207 | 0.0K | $821.0M | 0.22% | 0.00% | 0.50% |
| MUR+CL/LWAL/CDN+ERN/H:2/COM | COM | 10,107 | 0.0K | $821.0M | 0.11% | 0.00% | 0.50% | |
| ADO|ST|E | MUR+ADO/LWAL/CDN+ERN/H:3/RES | RES | 11,834 | 528.7K | $752.1M | 0.13% | 1.02% | 0.46% |
| MUR | MUR+CB/LWAL/CDN+ERN/H:2/IND | IND | 6,875 | 0.0K | $704.3M | 0.07% | 0.00% | 0.43% |
| MUR+CL/LWAL/CDN+ERN/H:1/IND | IND | 14,861 | 0.0K | $697.5M | 0.16% | 0.00% | 0.43% | |
| MR|MCF | MCF+CL/LWAL/CDL+ERL/H:2/RES | RES | 19,344 | 110.8K | $688.0M | 0.21% | 0.21% | 0.42% |
| MUR | MUR+CL/LWAL/CDN+ERN/H:3/RES | RES | 4,759 | 213.0K | $687.1M | 0.05% | 0.41% | 0.42% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:3/RES | RES | 4,035 | 180.0K | $644.7M | 0.04% | 0.35% | 0.39% |
| CR- | CR/LFINF/CDL+ERL/H:4-7/RES | RES | 1,865 | 125.0K | $632.0M | 0.02% | 0.24% | 0.39% |
| S | S/LFM/CDL+ERL/H:2/IND | IND | 3,032 | 0.0K | $621.0M | 0.03% | 0.00% | 0.38% |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:3/RES | RES | 1,699 | 75.8K | $515.5M | 0.02% | 0.15% | 0.31% |
| MUR | MUR+CL/LWAL/CDN+ERN/H:2/IND | IND | 4,948 | 0.0K | $507.3M | 0.05% | 0.00% | 0.31% |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:1/COM | COM | 5,251 | 0.0K | $464.0M | 0.06% | 0.00% | 0.28% |
| MUR+STDRE/LWAL/CDN+ERN/H:2/COM | COM | 2,625 | 0.0K | $464.0M | 0.03% | 0.00% | 0.28% | |
| MUR+ADO/LWAL/CDN+ERN/H:1/COM | COM | 40,543 | 0.0K | $421.6M | 0.44% | 0.00% | 0.26% | |
| MUR+ADO/LWAL/CDN+ERN/H:2/COM | COM | 20,267 | 0.0K | $421.6M | 0.22% | 0.00% | 0.26% | |
| MR|MCF | MCF+CL/LWAL/CDL+ERL/H:1/RES | RES | 19,840 | 110.8K | $420.2M | 0.21% | 0.21% | 0.26% |
| CR- | CR/LFINF/CDL+ERL/H:1/RES | RES | 14,924 | 83.3K | $316.0M | 0.16% | 0.16% | 0.19% |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:3-6/RES | RES | 1,318 | 58.7K | $315.4M | 0.01% | 0.11% | 0.19% |
| CR- | CR/LFINF/CDL+ERL/H:3/COM | COM | 1,105 | 0.0K | $263.0M | 0.01% | 0.00% | 0.16% |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:1/IND | IND | 2,897 | 0.0K | $234.9M | 0.03% | 0.00% | 0.14% |
| CR- | CR/LFINF/CDL+ERL/H:2/COM | COM | 1,649 | 0.0K | $227.9M | 0.02% | 0.00% | 0.14% |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:1/COM | COM | 2,996 | 0.0K | $219.4M | 0.03% | 0.00% | 0.13% |
| MCF+CB/LWAL/CDL+ERL/H:2/COM | COM | 1,508 | 0.0K | $219.3M | 0.02% | 0.00% | 0.13% | |
| CR- | CR/LFINF/CDL+ERL/H:>7/RES | RES | 466 | 41.6K | $197.5M | 0.01% | 0.08% | 0.12% |
| ADO|ST|E | MUR+STRUB/LWAL/CDN+ERN/H:3/COM | COM | 311 | 0.0K | $188.0M | 0.00% | 0.00% | 0.11% |
| MUR | MUR+CB/LWAL/CDN+ERN/H:3/COM | COM | 670 | 0.0K | $187.0M | 0.01% | 0.00% | 0.11% |
| CR- | CR/LFINF/CDL+ERL/H:1/IND | IND | 1,985 | 0.0K | $185.8M | 0.02% | 0.00% | 0.11% |
| CR/LFINF/CDL+ERL/H:4-7/COM | COM | 283 | 0.0K | $178.7M | 0.00% | 0.00% | 0.11% | |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:2/IND | IND | 965 | 0.0K | $170.8M | 0.01% | 0.00% | 0.10% |
| CR- | CR/LFINF/CDL+ERL/H:2/IND | IND | 662 | 0.0K | $135.1M | 0.01% | 0.00% | 0.08% |
| MR|MCF | MCF+CL/LWAL/CDL+ERL/H:3-6/RES | RES | 553 | 24.6K | $132.3M | 0.01% | 0.05% | 0.08% |
| MCF+CB/LWAL/CDL+ERL/H:1/IND | IND | 1,398 | 0.0K | $130.9M | 0.02% | 0.00% | 0.08% | |
| MUR | MUR+CL/LWAL/CDN+ERN/H:3/COM | COM | 411 | 0.0K | $115.8M | 0.00% | 0.00% | 0.07% |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:2/IND | IND | 469 | 0.0K | $95.2M | 0.01% | 0.00% | 0.06% |
| MCF+CL/LWAL/CDL+ERL/H:2/COM | COM | 625 | 0.0K | $92.0M | 0.01% | 0.00% | 0.06% | |
| MCF+CL/LWAL/CDL+ERL/H:1/COM | COM | 1,253 | 0.0K | $91.9M | 0.01% | 0.00% | 0.06% | |
| CR- | CR/LFINF/CDL+ERL/H:>7/COM | COM | 43 | 0.0K | $70.0M | 0.00% | 0.00% | 0.04% |
| CR/LFINF/CDL+ERL/H:1/COM | COM | 946 | 0.0K | $65.0M | 0.01% | 0.00% | 0.04% | |
| ADO|ST|E | MUR+STDRE/LWAL/CDN+ERN/H:3/COM | COM | 109 | 0.0K | $63.9M | 0.00% | 0.00% | 0.04% |
| MR|MCF | MCF+CB/LWAL/CDL+ERL/H:3-6/COM | COM | 122 | 0.0K | $61.6M | 0.00% | 0.00% | 0.04% |
| ADO|ST|E | MUR+ADO/LWAL/CDN+ERN/H:3/COM | COM | 856 | 0.0K | $61.2M | 0.01% | 0.00% | 0.04% |
| MR|MCF | MCF+CL/LWAL/CDL+ERL/H:1/IND | IND | 581 | 0.0K | $54.9M | 0.01% | 0.00% | 0.03% |
| MCF+CL/LWAL/CDL+ERL/H:2/IND | IND | 197 | 0.0K | $39.9M | 0.00% | 0.00% | 0.02% | |
| MCF+CL/LWAL/CDL+ERL/H:3-6/COM | COM | 52 | 0.0K | $23.8M | 0.00% | 0.00% | 0.01% |
